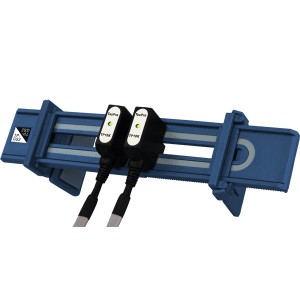

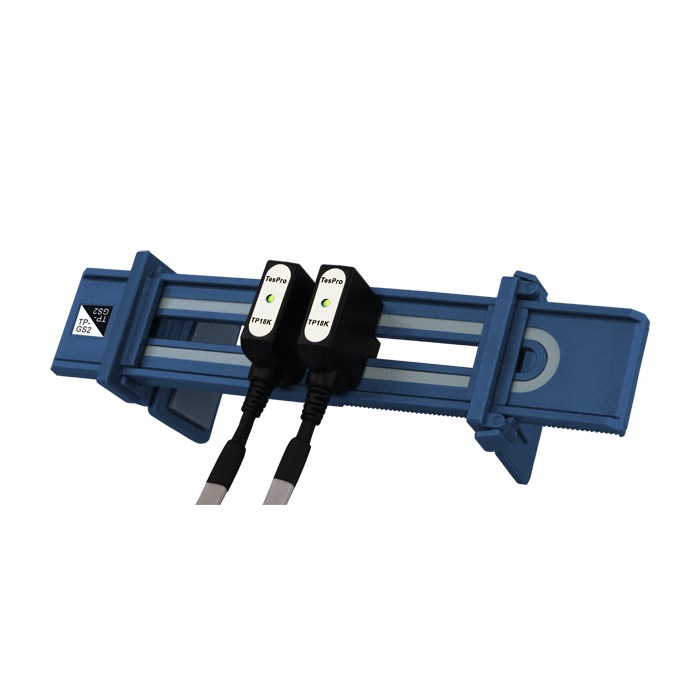

TP-18 Active/Reactive paired Optical Scanning Probes

TP-18 Active/Reactive Paired Optical Probe was designed for meter active and reactive accuracy testing at the same time.

TP-18 Active/Reactive Paired Optical Probe was designed for meter active and reactive accuracy testing at the same time.

Can be used when active/reactive pulse sources in a short distance of 10mm.
High optical sensitivity.
Can be used to sense Active/Reactive-pulse-sources for calibrating A/R energy at the same time.
To shield background light better.

Power supply:

5V-12V DC.

Connector:

Optional item from Sample List of Connectors for Scanning Probes

TP-16	X	Y
Probe model name	Number of pins of the connector	Type of connector

For example: for TP-16, if you choose the first connector(5 pins) in the following table, then the full model name is TP-16-5a.
