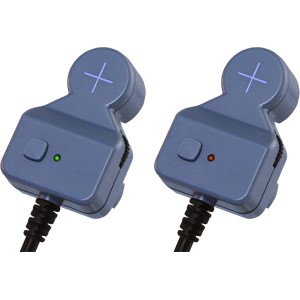

TP-17 Optical Scanning Probe with Duplex-function

TP-17A Multi-function Optical Probe has been designed for accuracy testing of both Ferraris and static meters.

TP-17A Multi-function Optical Probe has been designed for accuracy testing of both Ferraris and static meters.

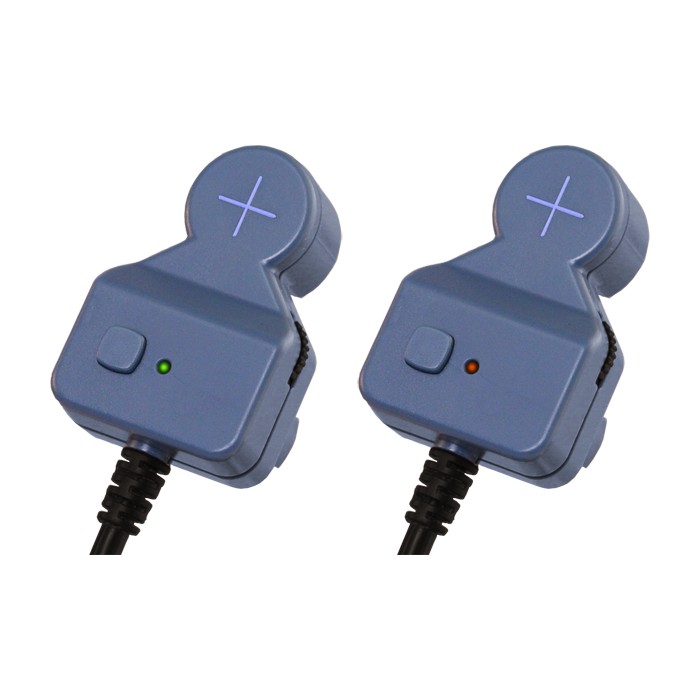

Can be used for both Ferraris and statistics meters accuracy testing, functions switching by push button.

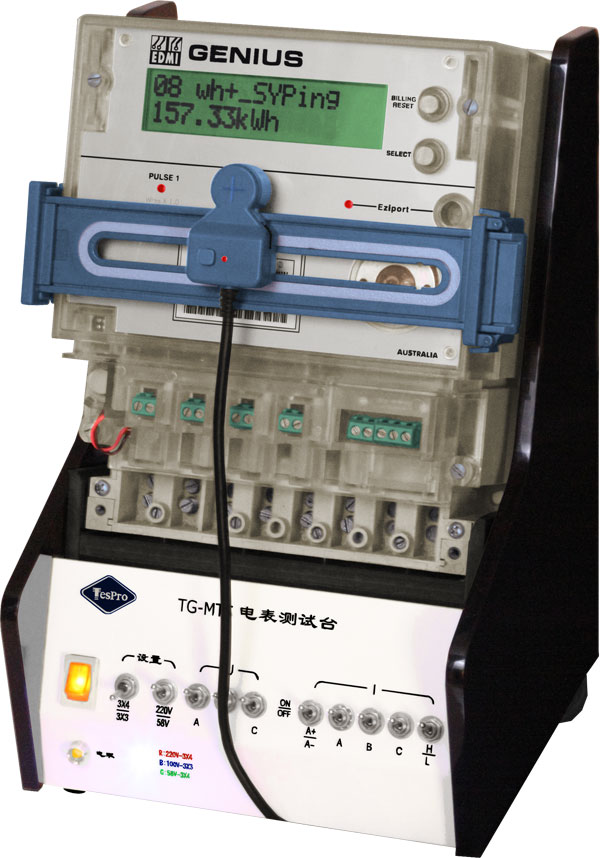

Can be used as accessory for test bench, or portable instrument on-site application.

TP-17A: Normal version
TP-17B: with sensitivity adjustment
TP-17C: a new version released in 2015 with sensitive adjust knob, and attached to the new fixture of TP-GS2.

Power supply:

5V/12VDC.

Connector:

Optional item from

TP-16	X	Y
Probe model name	Number of pins of the connector	Type of connector

For example: for TP-16, if you choose the first connector(5 pins) in the following table, then the full model name is TP-16-5a.
