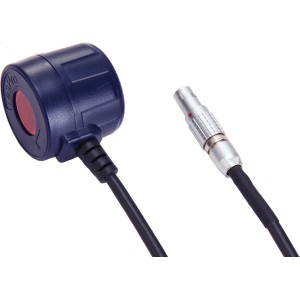

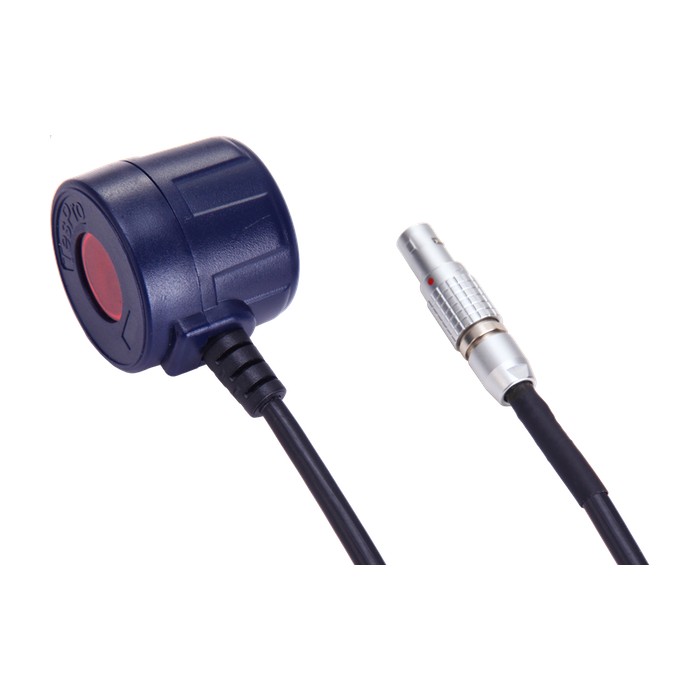

TP-16 Optical Scanning Probe for Portable Test Instrument

TP-16 is specially designed for portable test instrument, can be used on-site or under sunshine environment.
TP-16-PRS and TP-16-PWS are designed with dedicated connector to comply with the pin- out specs of PRS1.3 & PWS1.3 respectively.

Light sense:

TP-16 optical scanning probe can sense both light and IR pulses emitted by LED, and convert them to electric pulses.

Power supply:

DC 12-24V

Output pulse:

Positive electric pulses

Outlet cable:

Straight cable with 3M

Fastening:

Magnetic adhesion

Mechanical:

Impact ABS housing

Connector:

Optional item from

TP-16	X	Y
Probe model name	Number of pins of the connector	Type of connector

For example: for TP-16, if you choose the first connector(5 pins) in the following table, then the full model name is TP-16-5a.
