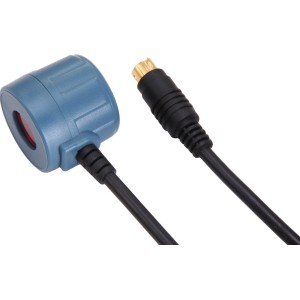

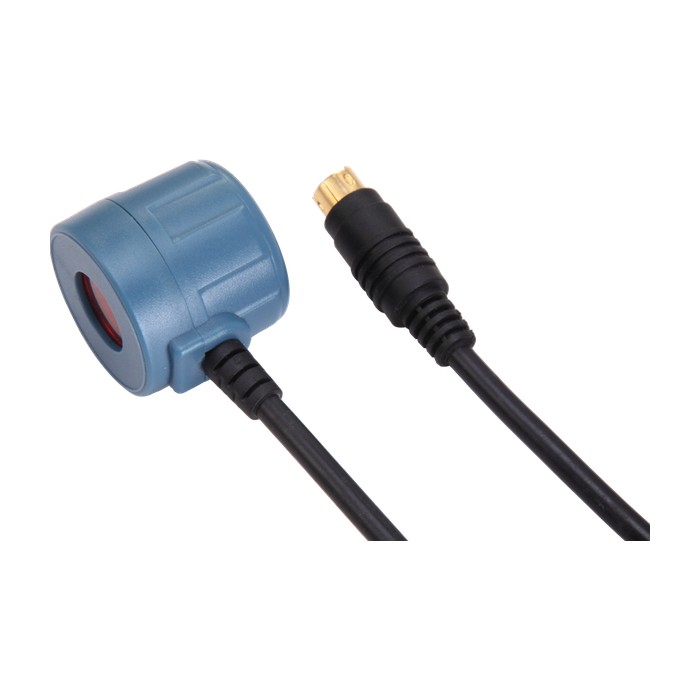

TP-15 Dual-frequency optical scanning probe for accuracy test

Dual-frequency optical scanning probe for accuracy test

TP-15 is two-frequency switchable optical scanning probe for meter accuracy testing.

Frequencies of optical pulses and electric pulses keeps the same, this mode is for normal meter constant.
The optical pulse is divided by 4 to electric pulse, this mode is designed for very high meter constant.

Light sense:

TP-15 optical scanning probe can sense both light and IR(Infrared) light pulses emitted by LED, and then convert them to electric pulses.

Switching:

The optical pulse can be switched by a press button, one LED indicating the frequency: green means1:1 and red 4:1.

Power supply:

DC 5V±10%

Cable:

Straight-line cable, 55cm in normal

Fastening:

Magnetic adhesion

Probe Fixture:

TP-GS fixture can be used for probe fastening onto any type of meters.

Connector:

Optional item from Table of Connectors for Optical Scanning Probes.

TP-16	X	Y
Probe model name	Number of pins of the connector	Type of connector

For example: for TP-16, if you choose the first connector(5 pins) in the following table, then the full model name is TP-16-5a.
