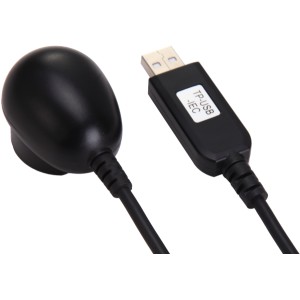

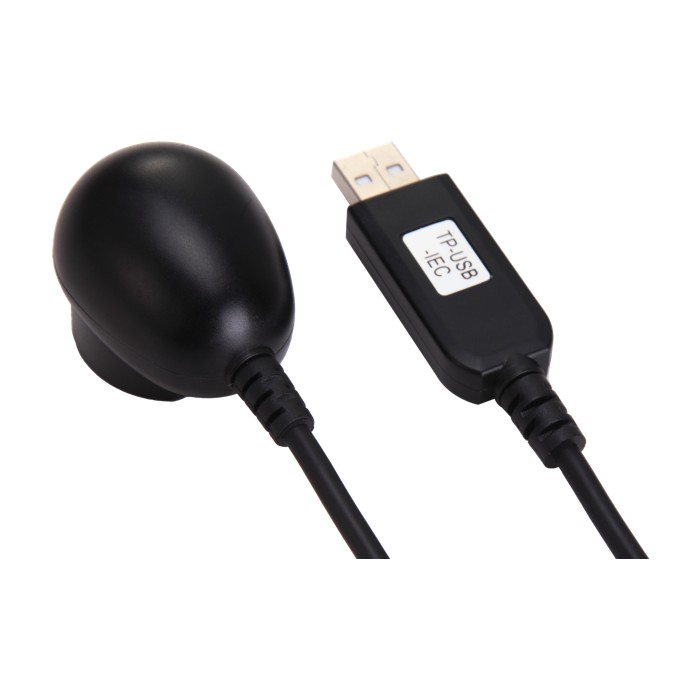

TP-USB Optical Probe for Meter Communication

View full size

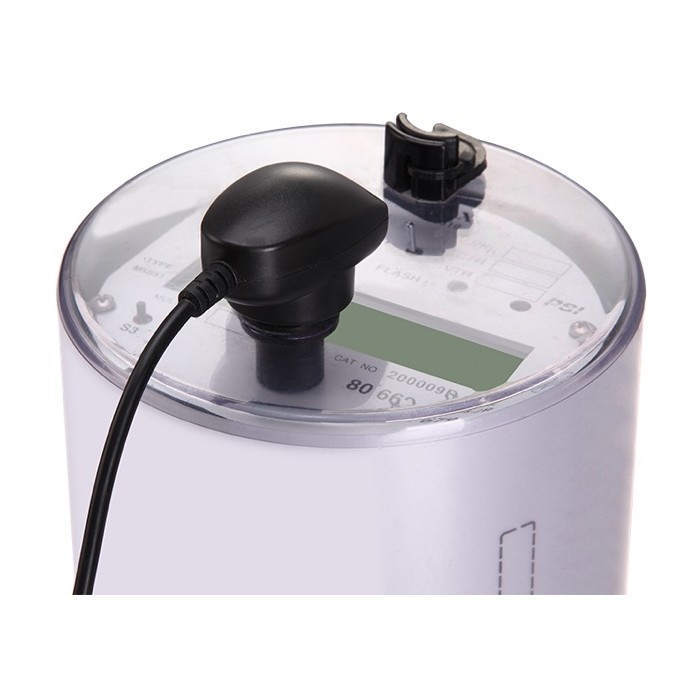

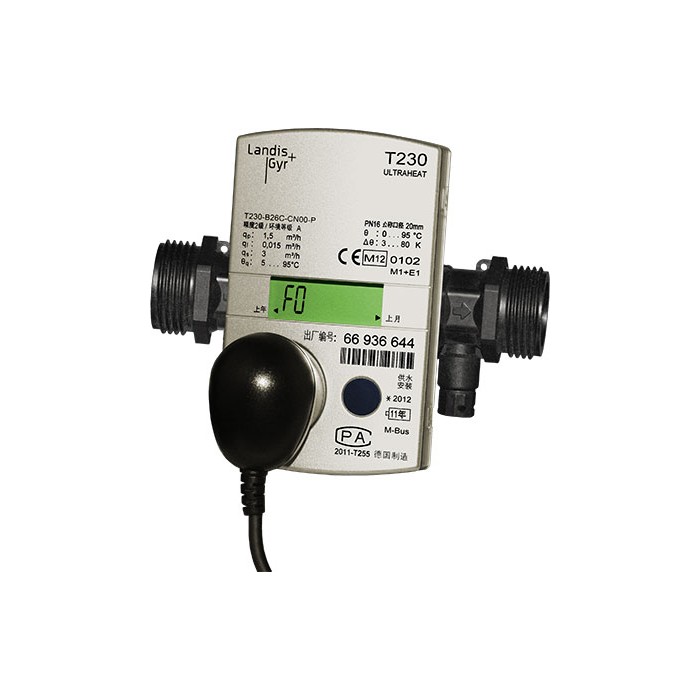

TP-USB optical probe is designed by Tespro in 2005 and patented. Now it is widely used in electric energy meter parameterization and data reading, to be an ideal device for both utilities and manufacturers. It generates some Sub-models and one works with gas meter and thermal meter.

More details

More info

TP-USB Optical Probe for Meter Communication

Sub-models

TP-USB-IEC
TP-USB-ANSI-N: Compatible with ANSI C12.18 (Normal Standard)
TP-USB-ANSI-S: Compatible with ANSI C12.18 type two, 2007(Sub-standard)
TP-USB-ANSI-U: Compatible with ANSI C12.18 (Universal, can be switch between N and S)

Specifications:

Standard:	IEC 62056-21 standard. ANSI C12.18-1996 & ANSI C12.18 type two-2007 standard
Interface:	Infrared optical
Connector:	USB connector with USB 2.0 standard
Maximum B.R.:	Up to 38400bps
Fastening:	Strong magnetic adhesion complied with IEC62056-21 or ANSI C12.18
Computer compatibility:	Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Cable:	2 meters (6.5 feet) straight cable.
Enviroment:	-15°C ~ 80°C (5°F - 176°F)
