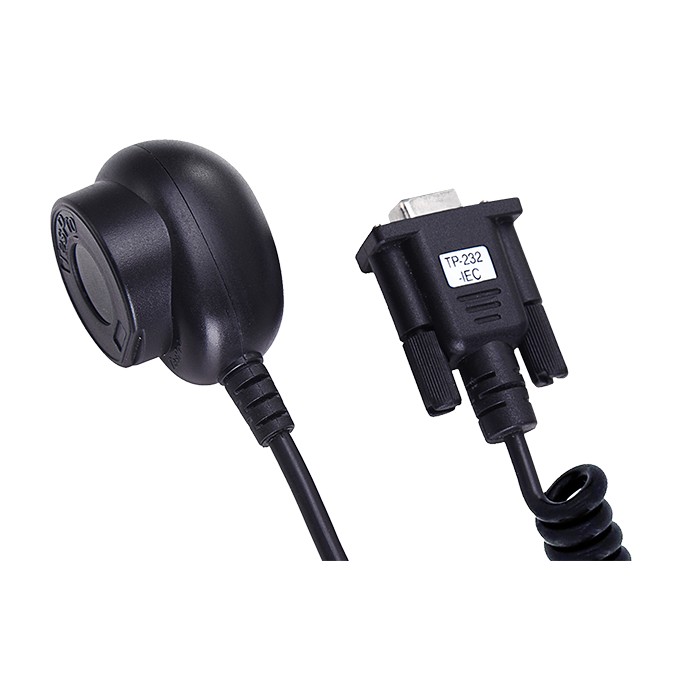

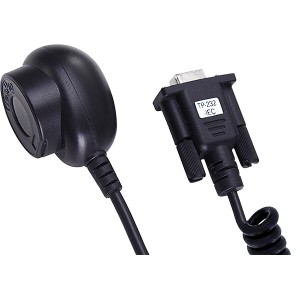

TP-232 Optical Probe for Meter Communication

TP-232 Optical Probe for Meter Communication

In 2002 Tespro designed TP-232 optical probe powered from RS232 port and then eliminating battery-box. In on-site application Tespro optical probe has been proven more convenience and reliable.

More details


TP-232 Optical Probe for Meter Communication

In 2002 Tespro designed TP-232 optical probe powered from RS232 port and then eliminating battery-box. In on-site application Tespro optical probe has been proven more convenience and reliable.

Sub-models

  • TP-232-IEC
  • TP-232-ANSI-N: Compatible with ANSI C12.18 (Normal Standard)
  • TP-232-ANSI-S: Compatible with ANSI C12.18 type two, 2007(Sub-standard)
  • TP-232-ANSI-U: Compatible with ANSI C12.18 (Universal, can be switched between N and S)

Specifications:

Standard:
  • IEC 62056-21 standard
  • ANSI C12.18-1996 & 2007 standard
  • EIA232E standard
Interface: Infrared optical
Connector: RS232-DB9 integrated connector
Power: From RS232 port, no battery required
Maximum B.R.: Up to 38400bps
Fastening: Strong magnetic adhesion complied with IEC62056-21 or ANSI C12.18
Cable: 2 meters straight cable(6.5 feet)
Enviroment: -15°C ~ 80°C (5°F - 176°F)

Options

Extended Temp. Cable: -35°C ~ 80°C (-31°F - 176°F)
Spiral cable is available.
Cable: Extended length upon request
