中文 CHB-50TF, 100TF, 200TF, 300TF Closed-loop Hall current sensor
- 查看全尺寸
| Name/Model: | Closed-loop Hall current sensor CHB-50TF, 100TF, 200TF, 300TF |
|---|---|
| Rated input Parameter: | 50A, 100A, 200A, 300A DC, AC or pulsed current / Bus bar |
主页 > CHB-50TF, 100TF, 200TF, 300TF Closed-loop Hall current sensor
|
Sensor Mod. |
CHB-50TF、100TF、200TF、300TF |
||||||
|
Description |
The SENSOR Module CHB-50TF, 100TF, 200TF, 300TF is a closed loop Hall current sensor to measure 50A…300A DC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits. The input of primary current is by a bus bar. |
||||||
|
|
|||||||
|
Closed-loop Hall Current Sensor: |
|||||||
|
Type |
Nominal current |
Output current |
Accuracy |
Supply voltage |
Aperture |
||
|
IN（A） |
IM（mA） |
X（%） |
Vc（V） |
mm |
|||
|
CHB-50TF |
50 |
50 |
±1.0% |
±12…18 |
Bus bar |
||
|
CHB-100TF |
100 |
100 |
±1.0% |
±12…18 |
Bus bar |
||
|
CHB-200TF |
200 |
100 |
±0.8% |
±12…18 |
Bus bar |
||
|
CHB-300TF |
300 |
150 |
±0.8% |
±12…18 |
Bus bar |
||
|
|
|||||||
|
Specifications: |
|||||||
|
Principle |
Closed loop Hall effect principle |
||||||
|
Input current |
50…300A（DC、AC、Pulsed current） |
||||||
|
Output current |
50mA/100mA/150mA |
||||||
|
Turns ratio |
1:1000（50A/100A）；1:2000（200A/300A） |
||||||
|
Frequency |
DC~100KHz |
||||||
|
Accuracy |
±0.8%~1.0% |
||||||
|
Response time |
<1μS |
||||||
|
Linearity |
<0.1% |
||||||
|
Supply voltage |
±12V…18V（±5%） |
||||||
|
Consumption |
10mA+IM（Output current） |
||||||
|
Isolation voltage |
Between primary and secondary circuit: 3KV RMS/50Hz/1min. |
||||||
|
Operating temp. |
0…+70℃ |
||||||
|
Applications |
The sensors are used in the industry field of power supplies, welding machines, converters, |
||||||
|
|
industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc. |
||||||
|
|
|||||||
|

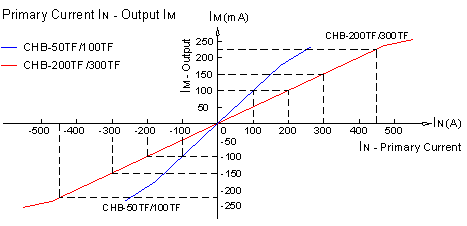

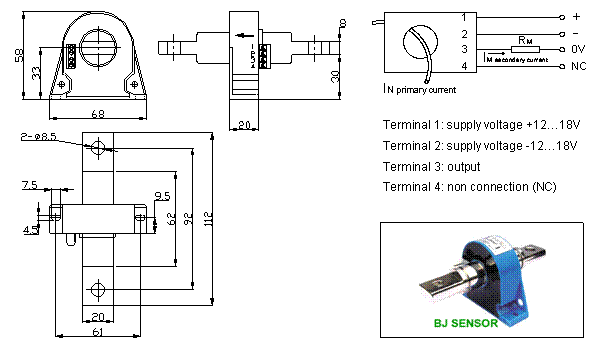

Dimensions(mm) & Connection: |
|||||||
|
|
|||||||
|
|
|||||||
|
Typical Applications: |
|||||||
|
|
|||||||
