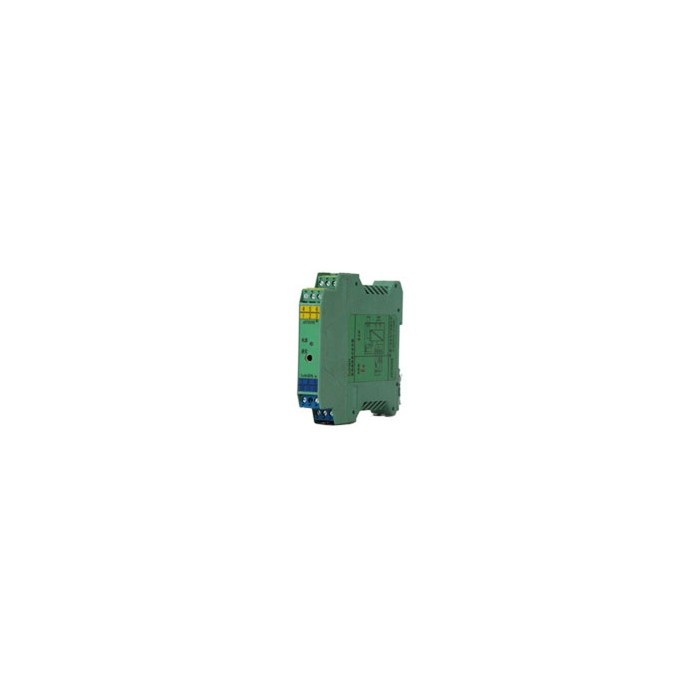

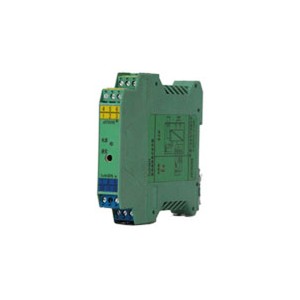

SLU-G12 isolators/power suppliers

1. Technical Parameters:

1)Main Functions and Features
● Compact and insert-mounting/clip mounting
● Input, output and power supply are isolated from each other
● Transfer DC signal to isolated 2 circuits standard process signal.
● With power indicator.
● With Zero and Span adjustments for output

2)Input
●  Current input:  Current: 4~20mA,
                            Input resistance: 100Ω (built-in)
●  voltage input:  Voltage: 1~5V,
                            Input resistance: ≥500 KΩ


3)  Output
●  Current output:  Current: 4~20mA,
                              Load resistance: ≤350Ω
●  Voltage output:  Voltage: DC 1~5V,
                              Load resistance: ≥10 KΩ

4) Environmental Parameters:
● power supply: DC24V±10%, current consumption 2W when aftereffect Wpp < 10%
● temperature for operating: -5 ~ +55 ℃
● humidity: 0%~95%RH (none congeal)

2. Performance Index (To full span)
● Standard accuracy: ±0.1% FS
● Temperature drift: ±0.015%/℃
● Response time: ≤0.5s (0→90%)
● Power voltage affect: ±0.1%/permitted voltage range
● Insulated resistance:
   Input, output and power supply are isolated from each other ≥100 MΩ/DC 500V
● Isolation intensity: Input-output-power supply-ground:
   DC 1500V/1 minute (DC power)
   AC 1500V/1 minute (AC power)
● Load resistance affect: ±0.1%/250Ω
● Settling time: ≤3s

3. Construction and Dimension
● Structure: compact, insert-mounting/clip mounting
● Connection: 3mm connection terminal
● Terminal screw material: nickel plating around surface of iron
    (screw arrowed wrest<0.8N•m)
● Shell material: burn-bear colophony
● Isolation: channel isolation (input,output and power supply are isolated from each othe)
● Zero adjustments-range: -5 ~ +5%
● Span adjustments-range: 95~105%
● Power indicate light: green LED, light on when power supply
● Mounting: DIN rail
● Outline dimension (W×H×D): type S: 25×80×80mm
                                                 type M: 23.2×93×40.3mm
● Net weight: app. 150 g
