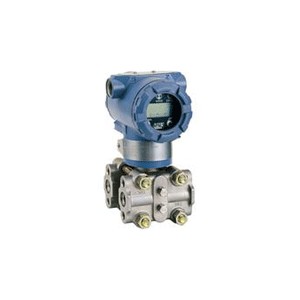

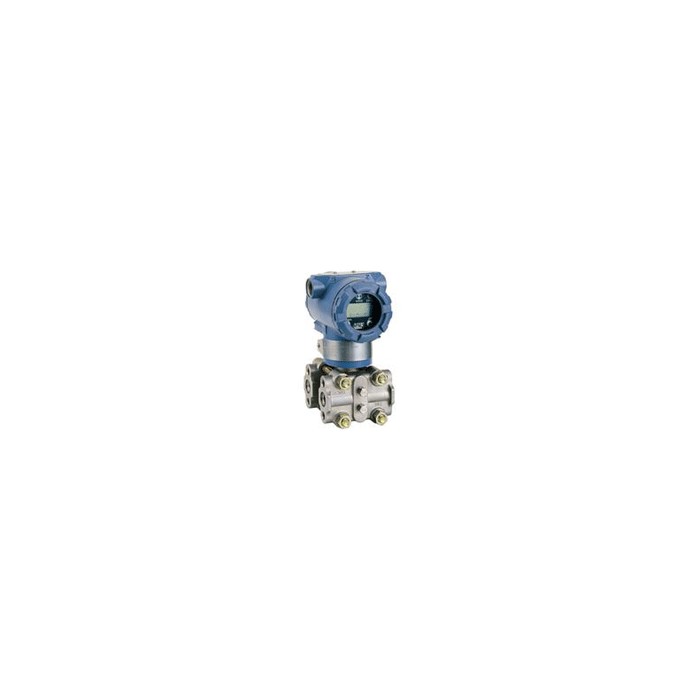

SLU-CHP Electric Capacity High Static-pressure Differential-pressure Transmitter

1.Technical Performance

·To subject: liquid, gas or vapour

·Range ability:

·Output: 4-20mA DC

·Power: 24VDC, it may be 12VDC if non-load, max. is 45VDC

·Positive & negative transfer: up and low may not exceed the range limit after positive & negative transfer, whatever the output is.

Max. positive transfer: 500% of the min. span.

Max. negative transfer: 600% of the min. span.

·Temperature:

Temperature of operating for amplifier: -25℃ ～ +90℃

temperature of operating for sensor:  -40℃ ～ +104℃

·Relative humidity: 0~100%

·Sensor capacity changes: <0.16cm³

·Indicate meter (field): scale gauge length: 30mm,

grade: 2.5

·Isolating explosion: ds Ⅱ BT5,   Intrinsically-safety: ia Ⅱ CT5

·Span & Zero: external continually adjusted

·Static-pressure and Over-pressure limit:

Max. operating pressure: 32Mpa

Max. safe pressure: 32Mpa

Single-side Max. pressure: 32Mpa

Flange bear pressure: 60Mpa

·Static-pressure affect:

Zero error: <±2% of max. range, when operating pressure is 32Mpa

Range error: is a system error, can be calibrated.

·Damp: continually adjusted when time constant is between 0.2~1.67 seconds.

·Settling time: 2s,

2. Performance Index (note: test under the condition of none shift, max. range status of sensor, 316Lstainless isolating diaphragm and other standard condition)

·Accuracy: ±0.25% of the span, including the synthesize errors of linear,     change-difference and repeat.

·Stability: ±0.25% of max. range (12 months)

·Temperature affect:

  zero error:±0.5% / 55℃,  zero & range errors:±1.0% / 55℃, when max. range;

  zero error:±3.0% / 55℃,  zero & range errors:±3.5% / 55℃, when min. range;

·Over-pressure affect: ±1%~±5% of max. range (according to permitted over-loads for different ranges)

·Vibration affect: ±0.05% / g of the max. range, when 200Hz, any axis up.

·Power affect: <0.005%/V of output range

·Load affect: none affect when voltage >12VDC input to the transmitter.

·Mounting position affect: may cause zero error max. 0.24Kpa, but can be calibrated,   none affect for range

3. Structure Index:

·Structure material: diaphragm: 316 stainless steel, hastelloy C, Monel alloy, Tantalum;

                 O ring: Fluorin rubber;

  Flange & bolt: 316 stainless steel;

  Fill oil: silicon oil;

  Electric shell: low-Cu & aluminum alloy

  Plating of electric shell: toast lacquer of amido, formyl, ethene & colophony;

·Pressure-lead connector:

  Flange NPT 1/4 (taper pipe screw thread), (this is the transmitter flange connection);

  Connection head screw thread NPT 1/2 (taper pipe screw thread), (selected);

· Electric parts connector:

  Down-lead conduit NPT 1/2 line-through hole;

· Net weight: 2.4kg (exclude the selected parts)
