| Name/Model: | Closed-loop Hall voltage sensor CHV-20L |
|---|---|
| Rated input Parameter: | 100V...300V (100mA) DC, AC or pulsed voltage |
主页CHV-20L Closed-loop Hall voltage sensor
|
Sensor Mod. |
CHV-20L |
||||||
|
Description |
The SENSOR Module CHV-20L is a closed loop Hall voltage sensor to measure 100…300V (100mA) DC, AC or pulsed voltages with a galvanic isolation between the primary and secondary circuits. |
||||||
|
|
|||||||
|
Closed-loop Hall Voltage Sensor: |
|||||||
|
Type |
Nominal current |
Output voltage |
Accuracy |
Supply voltage |
Aperture |
||
|
IN（mA） |
VM（V） |
X（%） |
Vc（V） |
mm |
|||
|
CHV-20L |
100 |
5 |
±1.0% |
±12~15 |
PCB |
||
|
|
|||||||
|
Specifications: |
|||||||
|
Principle |
Closed loop Hall effect principle |
||||||
|
Input voltage |
10V…300V（10mA）（DC、AC、Pulsed voltage） |
||||||
|
Output |
5V |
||||||
|
Frequency |
DC~20KHz |
||||||
|
Accuracy |
±1.0% |
||||||
|
Response time |
40μS |
||||||
|
Linearity |
<0.1% |
||||||
|
Supply voltage |
±12V~15V（±5%） |
||||||
|
Consumption |
10mA+IM（Output current） |
||||||
|
Isolation voltage |
Between primary and secondary circuit: 2.5KV RMS/50Hz/1min. |
||||||
|
Operating temp. |
0℃ …+70℃ |
||||||
|
Applications |
The sensors are used in the industry field of power supplies, welding machines, converters, |
||||||
|
|
industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc. |
||||||
|
|
|||||||
|

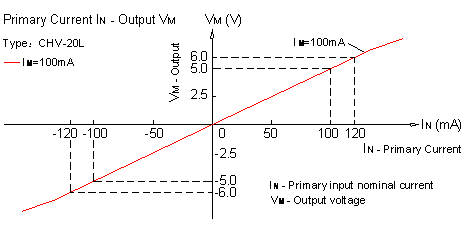

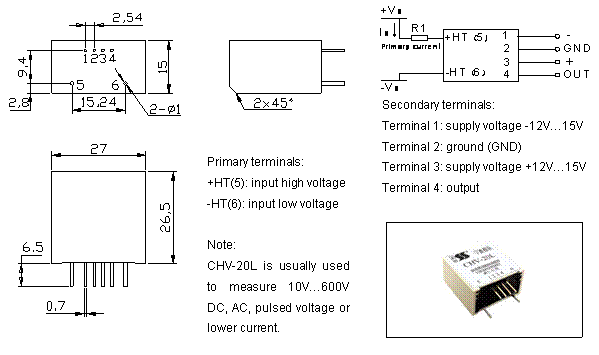

Dimensions(mm) & Connection: |
|||||||
|
|
|||||||
|
|
|||||||
|
Typical Applications: |
|||||||
|
|
|||||||
