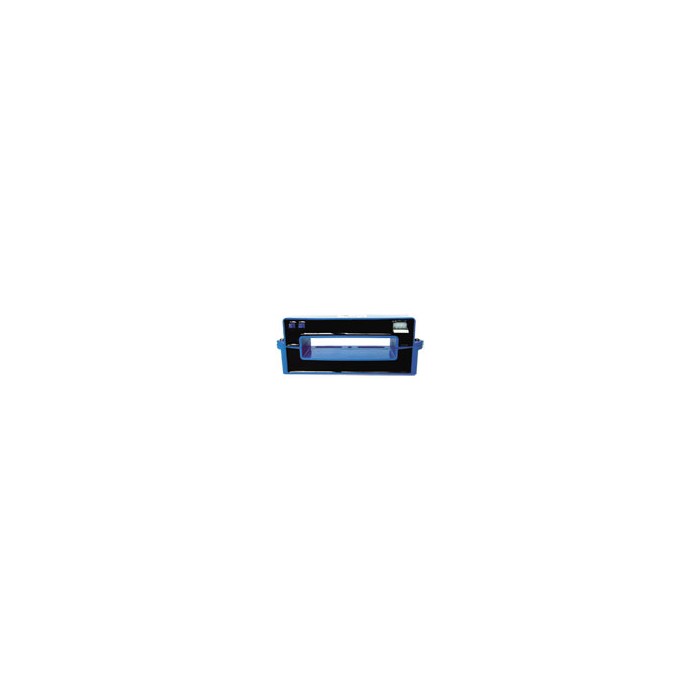

中文SCHK-1000Y2, 2000Y2, 3000Y2, 6000Y2 Open-loop Hall effect current sensor
- View full size
Home > SCHK-1000Y2, 2000Y2, 3000Y2, 6000Y2 Open-loop Hall effect current sensor
|
Sensor Mod. |
CHK-1000Y2、2000Y2、3000Y2、6000Y2 |
||||||
|

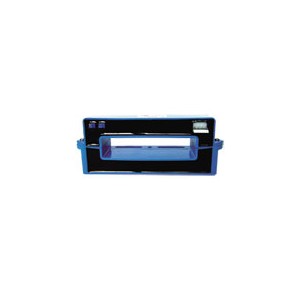

Description |
The SENSOR Module CHK-Y2 is an open loop Hall current sensor to measure 1000A…6000A DC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits. The aperture can be opened by a structure of a split core for easy installation. |
||||||
|
|
|||||||
|
Open-loop Hall Current Sensor: |
|||||||
|
Type |
Nominal current |
Output voltage |
Accuracy |
Supply voltage |
Aperture |
||
|
IN（A） |
VM（V） |
X（%） |
Vc（V） |
mm/split core |
|||
|
CHK-1000Y2 |
1000 |
±4 |
±1.0% |
±12~15 |
23×103.5 |
||
|
CHK-2000Y2 |
2000 |
|
|
|
|
||
|
CHK-3000Y2 |
3000 |
|
|
|
|
||
|
CHK-6000Y2 |
6000 |
|
|
|
|
||
|
|
|||||||
|
Specifications: |
|||||||
|
Principle |
Open loop Hall effect principle |
||||||
|
Input current |
1000…6000A（DC、AC、Pulsed current） |
||||||
|
Output voltage |

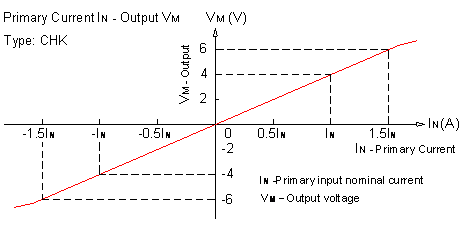

±4V；The waveform of the output voltage at the secondary side is just the same with the waveform of the input current at primary side. |
||||||
|
Frequency |
DC~20KHz |
||||||
|
Accuracy |
±1.0% |
||||||
|
Response time |
<10μS |
||||||
|
Linearity |
<1.0% |
||||||
|
Supply voltage |
±12V...15V（±5%） |
||||||
|
Consumption |
25mA |
||||||
|
Isolation voltage |
Between primary and secondary circuit: 5KV RMS/50Hz/1min. |
||||||
|
Operating temp. |
-10℃ …+85℃ |
||||||
|
Applications |
The sensors are used in the industry field of power supplies, welding machines, converters, |
||||||
|
|
industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc. |
||||||
|
|
|||||||
|

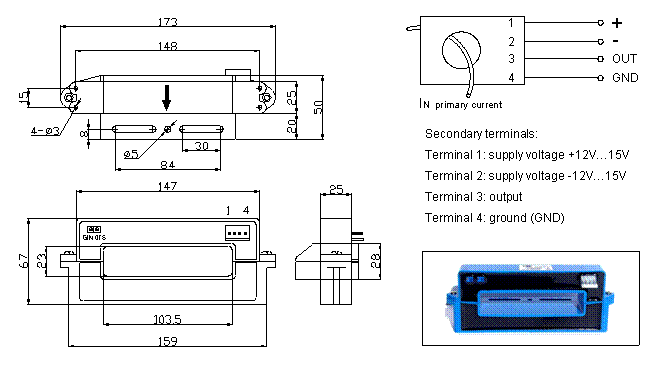

Dimensions(mm) & Connection: |
|||||||
|
|
|||||||
|
|
|||||||
|
Typical Applications: |
|||||||
|
|
|||||||
