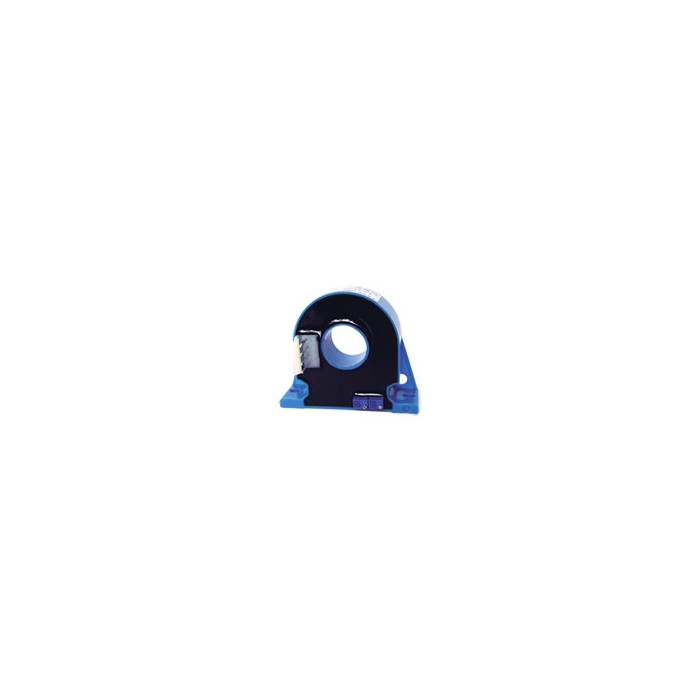

SCHF-50F, 100F, 200F, 400F, 500F, 600F Open-loop Hall effect current sensor

SCHF-50F, 100F, 200F, 400F, 500F, 600F Open-loop Hall effect current sensor

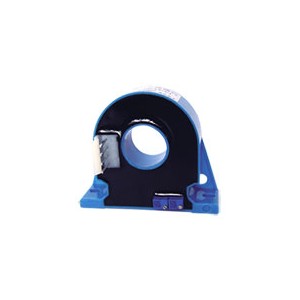

Name/Model:   Open-loop Hall current sensor CHF-50F, 100F, 200F, 400F, 500F, 600F
  Rated input Parameter:   50A, 100A, 200A, 400A, 500A, 600A DC, AC or pulsed current

More details



Sensor Mod.

CHF-50F、100F、200F、400F、500F、600F

Description

The SENSOR Module CHF-F is an open loop Hall current sensor to measure 50A…600A DC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits.



Open-loop Hall Current Sensor:

Type

Nominal current

Output voltage

Accuracy

Supply voltage

Aperture

IN（A）

VM（V）

X（%）

Vc（V）

mm

CHF-50F

50

±4

±1.0%

±12~15

φ20

CHF-100F

100









CHF-200F

200









CHF-400F

400









CHF-500F

500









CHF-600F

600











Specifications:

Principle

Open loop Hall effect principle

Input current

50…600A（DC、AC、Pulsed current）

Output voltage

±4V

Frequency

DC~20KHz

Accuracy

1.0%

Response time

<10μS

Linearity

1.0%

Supply voltage

±12V...15V（±5%）

Consumption

25mA

Isolation voltage

Between primary and secondary circuit: 3KV RMS/50Hz/1min.

Operating temp.

-10℃ …+85℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,



industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

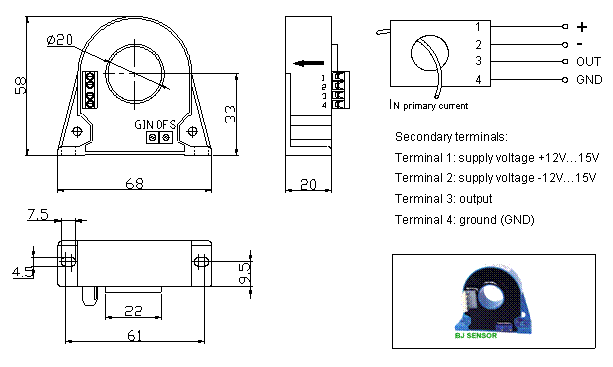

Dimensions(mm) & Connection:

50F



Typical Applications:



50F

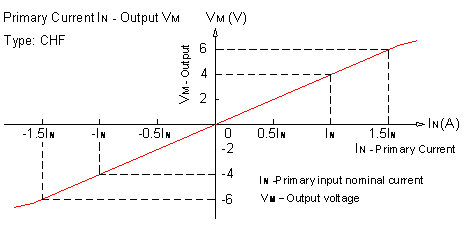

Primary current IN and output VM:

It is isolated between the primary current IN and the secondary output voltage VM.

The linearity is better than 1.0%.



Type: CHF-50F~600F

Nominal current: IN=50A~600A

Output voltage: VM=±4V

Supply voltage: Vc=±15V

Measuring resistance: RM>10KΩ
