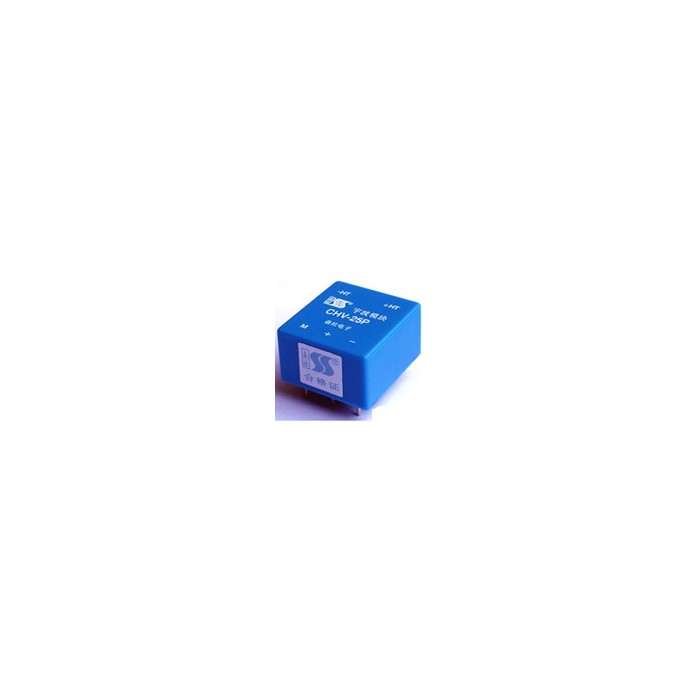

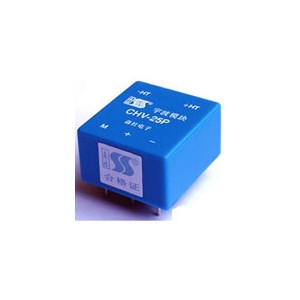

中文 CHV-25P Closed-loop Hall voltage sensor
- 查看全尺寸
_
| Name/Model: | |
|---|---|
| Rated input Parameter: | 10V...600V (10mA) DC, AC or pulsed voltage |
主页CHV-25P Closed-loop Hall voltage sensor
|
Sensor Mod. |
CHV-25P |
||||||
|
Description |
The SENSOR Module CHV-25P is a closed loop Hall voltage sensor to measure 10…600V (10mA)DC, AC or pulsed voltages with a galvanic isolation between the primary and secondary circuits. |
||||||
|
|
|||||||
|
Closed-loop Hall Voltage Sensor: |
|||||||
|
Type |
Nominal current |
Output current |
Accuracy |
Supply voltage |
Aperture |
||
|
IN（mA） |
IM（mA） |
X（%） |
Vc（V） |
mm |
|||
|
CHV-25P |
10 |
25 |
±1.0% |
±12~15 |
PCB |
||
|
|
|||||||
|
Specifications: |
|||||||
|
Principle |
Closed loop Hall effect principle |
||||||
|
Input voltage |
10V…600V（10mA）（DC、AC、Pulsed voltage） |
||||||
|
Output |
25mA |
||||||
|
Frequency |
DC~100KHz |
||||||
|
Accuracy |
±1.0% |
||||||
|
Response time |
10μS |
||||||
|
Linearity |
<0.1% |
||||||
|
Supply voltage |
±12V~15V（±5%） |
||||||
|
Consumption |
10mA+IM（Output current） |
||||||
|
Isolation voltage |
Between primary and secondary circuit: 2.5KV RMS/50Hz/1min. |
||||||
|
Operating temp. |
0℃ …+70℃ |
||||||
|
Applications |
The sensors are used in the industry field of power supplies, welding machines, converters, |
||||||
|
|
industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc. |
||||||
|
|
|||||||
|

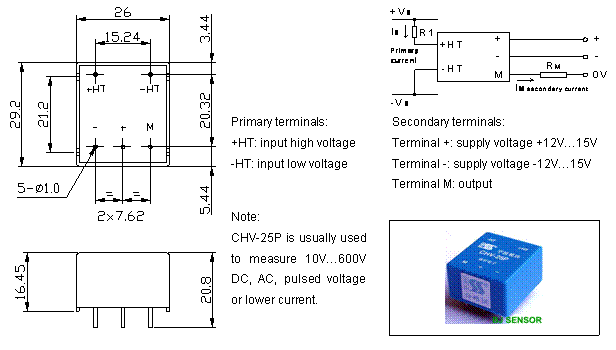

Dimensions(mm) & Connection: |
|||||||
|
|
|||||||
|
|
|||||||
|
Typical Applications: |
|||||||
|
|
|||||||
